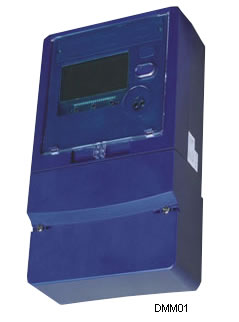

DSSD238, DTSD238 Three Phase Multi-function KWH Meter
(Three Phase Multifunction Meter, Three Phase Multifunction Watt-hour Meter, Three Phase Multifunction Energy Meter)

Brief Introduction
The DSSD238,DTSD238 three phase electrical multi-function KWH meter is a new type of multi-functional meter. It is a type of multi-meter made in accordance with national standards such as GB/T17215-2002 and GB/T17882-1999.
Lixin has been specializing in three phase meter since 1998. As an experienced three phase meter manufacturer and supplier in China, we can provide reliable energy meters that are ISO and CE certified. Apart from three phase multi-function KWH meter, we can also provide other KWH meters like single phase DIN-rail KWH meter, three phase prepaid KWH meter and more. If you have any doubts or questions, please let us know.

Function and Features
1. Measure functions. This multifunctional KWH meter is able to record forward, reverse active and reactive power, max demand and the time it happens.
2. It could carry out immediate measurement of power, demand, and power factor.
3. Multi-rate function.
4. It could carry out 4 rates, 6 time zones, and 12 public holidays.
5. The lineate communication and the infrared wireless communication are made in accordance with DL/T645-1997
6. Overload alarming function.
7. The data can be alternately displayed. This alternation display function is fully adjustable.
8. It could still carries out reading function with a build in lithium battery.
9. Communication: RS485 interface (1200bps—9600bps) and infrared communication interface (1200bps)
10. Offer four-way power pulse output
11. Time recording function
12. It can carry out real time testing of the voltage, current, power and frequency of the three phases.
13. All the data can be displayed on the LCD display.
14. Power off alarming function
15. Starting current: Active 0.001In (0.5S class, 0.5class) 0.002In (class 1) Reactive 003In(class 2)
16. Reasonable anti-creeper design.
17. Spit phase measuring

Technical Data

Rated Current (A) 3×1.5(6),3×5(20),3×10(40),3×15(60),3×20(80),3×30(100)
Rated Voltage(V) DSSD238 Two-phase three-wire 3×100V 3×220V 3×380V DTSD238 Three-phase four-wire 3×220/380V 3×230/400V or 3×57.5/100V
Rated Frequency (Hz) 50 or 60
Accuracy Class Active: 0.5,Reactive: 1.0 or Active: 1.0, Reactive: 2.0
Clock Error ≤0.5sec/per day(reference temperature); ≤1.0sec/per day(operating time is supported by battery)
Battery Imported lithium battery voltage: 3.0 or 3.6V;Capacitance>1000mAh;1200bps~19200bps;It has the program both in inside and outside; Update the date per 0.01 degree; Two sets of battery keep the clock and relative data; Setup the alarm data of the battery; Loss and press blanking timing and electric consumption rate switches over time in the minimum interval for one minute.

Noting A: 3×1.5(6)A(5A/CT) can be connected directly or through current transformer.
Noting B: Two phase three wire watt hour meter is also known as three phase three wire hour meter in some countries.

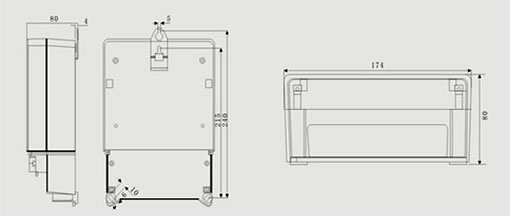

Outer and mount dimension
