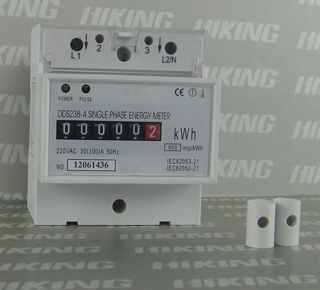

DDS238-4 Single Phase DIN-rail KWH Meter
(Single Phase DIN-rail Meter, Single Phase DIN-rail Watt-hour Meter, Single Phase DIN-rail Energy Meter)

Brief Introduction
Our DDS238-4 single phase DIN-rail KWH meter is made in accordance with national standard GB/T17215 and international standard IEC62053-21. It can easily and accurately measure the energy consumption and have it displayed with a step type impulse register or LCD display. It is a reliable electricity meter with small size, light weight, specious appearance and convenient installation.
Lixin has 11 years of experience in manufacturing single phase meter, and is a qualified manufacturer and supplier of single phase meters, KWH meters, electricity meters and more. Our products are ISO and CE certified and are exported to many countries that include South Africa, Netherlands, Greece, Mexico, Argentine and more. Apart from DIN-rail meters, we can also provide prepaid meter, multi-rate meter, three phase meter and more. At Lixin, we welcome you to visit us and know more about the quality of our products.

Functions and Features
1. Standard 35mm DIN rail installation, complying with standard DIN EN5002
2. Optional step motor type impulse register display 99999.9kwh or LCD digital display 99999.9kwh ,999999.9kwh, 99999.9kwh
3. LCD display meter can be selected to display power consumption (KWH) and max demand (KW) (as special required)
4. Standard configuration "power LED" indication and "impulse LED" indication.
5. Standard one port of passive pulse output (polarity)

Technical Data

Type DDS238-4
Accuracy Class Class 1
Rated Voltage ( V ) 120,220,230,240(V)
Rated Current ( A ) 2.5(10),5(30),5(40),10(50),15(60),20(100)
Starting Current 0.4%Ib
Insulation Performance AC voltage 2KV for 1 minute, impulse voltage 6kv

Illustrations

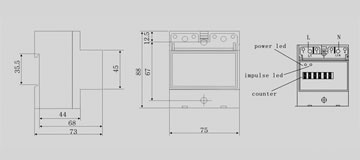

     Wire connection            Outer and mount dimension
