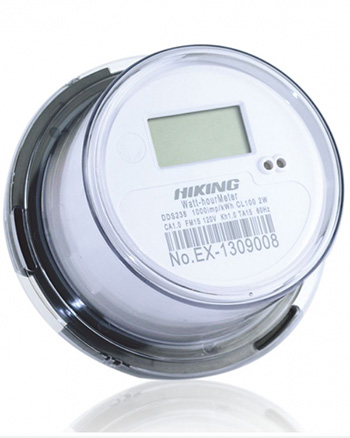

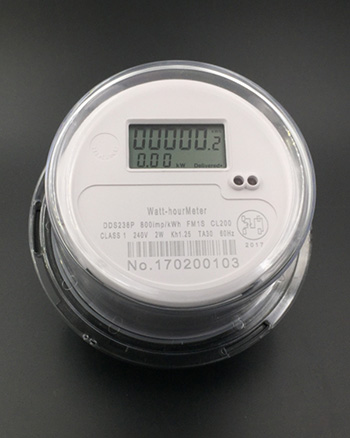

Single Phase DIN-rail KWH Meter (Single Phase DIN-rail Meter, Single Phase DIN-rail Watt-hour Meter, Single Phase DIN-rail Energy Meter)

A1201

Display mode:
LCD

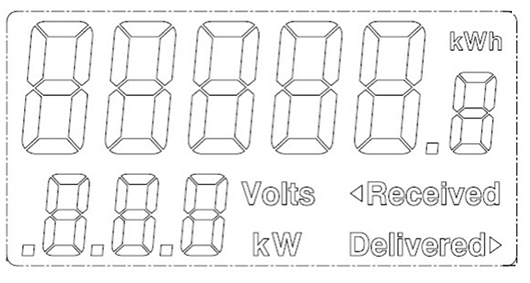

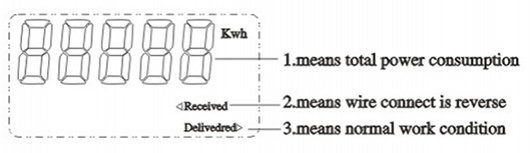

Display format:
①XXXXX (5-digit integer)
②XXXXX.X (5-digit integer + 1-digit decimal)


Single Phase DIN-rail KWH Meter (Single Phase DIN-rail Meter, Single Phase DIN-rail Watt-hour Meter, Single Phase DIN-rail Energy Meter)

A1201

Display mode:
LCD

Display format:
① XXXXX (5-digit integer)
② XXXXX.X (5-digit integer + 1-digit decimal)

Description
The two types of electricity meters are used to measure single phase two wire AC active energy. Utilizing SMT (Surface mounting technology) to manufacture, the meters completely accord with the international standard IEC62053-21.

Features
1. Active energy is measured bi-directionally and reverse electricity will be measured and counted into total electricity.
2. Reverse indicator light
3. Impulse indicator light will flicker to show working status when passive pulse outputs.
4. Protection II

Optional Function
1. Dead battery display added
2. Realtime current, voltage and power measurement and display.

Technical Data

Rate voltage 110V,120V,220V,240V
Working voltage range 0.8~1.2Un
Rate Current FM1S 10(60)A, 15(100)A, 30(200)A , CL100 CL200
Rate Current FM2S 15(100)A, 30(200)A , CL100 CL200
Frequency 60Hz
Connection mode Direct type
Display LCD
Accuracy class 1.0 or 0.5
Power consumption < 2W/10VA
Start current 0.004Ib
AC voltage withstand 4000V/25mA for 60 sec
Impulse Voltage 6kV 1.2μs waveform
IP grade IP54
Constant 800~1600 imp/kWh
Pulse output Passive pulse, pulse width is 80+5 ms
Executive standard IEC61036,IEC62053-21,ANSI
Work temperature -30℃~70℃
Weight Approx 0.7kg
Export country Philippines and south American

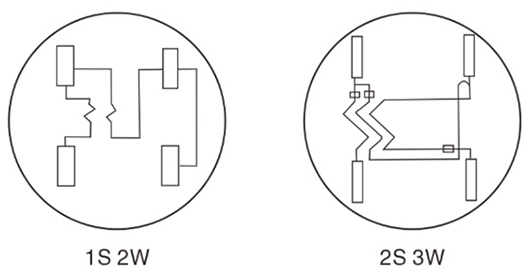

Wire connection

Single Phase DIN-rail KWH Meter (Single Phase DIN-rail Meter, Single Phase DIN-rail Watt-hour Meter, Single Phase DIN-rail Energy Meter)

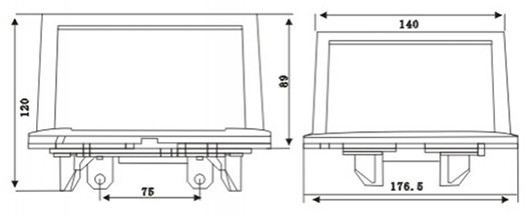

Outline dimension

Single Phase DIN-rail KWH Meter (Single Phase DIN-rail Meter, Single Phase DIN-rail Watt-hour Meter, Single Phase DIN-rail Energy Meter)

Single Phase DIN-rail KWH Meter (Single Phase DIN-rail Meter, Single Phase DIN-rail Watt-hour Meter, Single Phase DIN-rail Energy Meter)

Single Phase DIN-rail KWH Meter (Single Phase DIN-rail Meter, Single Phase DIN-rail Watt-hour Meter, Single Phase DIN-rail Energy Meter)
