DDS238
Single Phase KWH Meter (Single Phase Meter, Single Phase Watt-hour Meter, Single Phase Energy Meter)

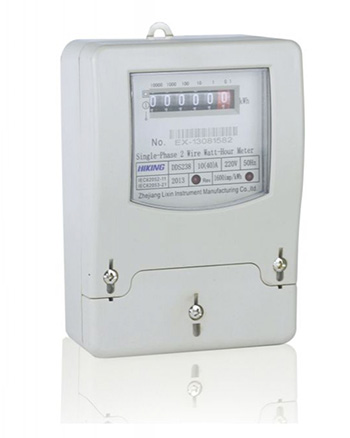

E1201A

Display mode:
Mechanical register display

Display format:
① XXXXX.X (5-digit integer + 1-digit decimal)
②XXXXXX.X(6-digit integer + 1-digit decimal)
③XXXXX.XX(5-digit integer + 2-digit decimal)
④XXXXXX (6-digit integer)


Single Phase KWH Meter (Single Phase Meter, Single Phase Watt-hour Meter, Single Phase Energy Meter)

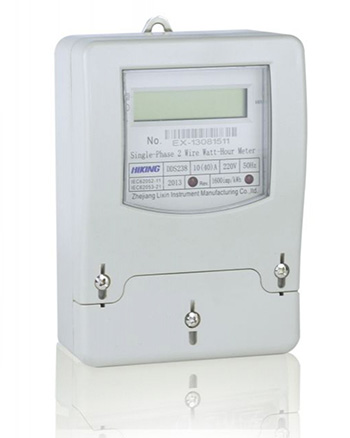

E1201L

Display mode:
LCD

Display format:
① XXXXXX.X(6-digit integer + 1-digit decimal) (Default)
② XXXXX.XX(5-digit integer + 2-digit decimal)
③ XXXXXXX (7-digit integer)

Description
The two types of electricity meters are used to measure single phase two wire AC active energy. Utilizing SMT (Surface mounting technology) to manufacture, the meters completely accord with the international standard IEC62053-21.

Features
1. Active energy is measured bi-directionally and reverse electricity will be measured and counted into total electricity.
2. Impulse indicator light will flicker to show working status when passive pulse outputs.
3. Two kinds of case shells available: Protection I or Protection II.

Optional Function
1. Reverse indicator light
2. Dead battery display added (E1201L only)

Technical Data

Rate voltage 110V,120V,220V,230V,240V
Working voltage range 0.8~1.2Un
Rate Current 1.5(6)A,10(40)A,5(60)A,10(100)A, or special required
Frequency 50Hz or 60Hz
Connection mode Direct type
Display mechanical step register or LCD
Accuracy class 1.0
Power consumption < 1W/10VA
Start current 0.004Ib
AC voltage withstand 4000V/25mA for 60 sec
Impulse Voltage 6kV 1.2μs waveform
IP grade IP51
Constant 800~6400 imp/kWh
Pulse output Passive pulse, pulse width is 80+5 ms
Executive standard IEC61036,IEC62053-21,IEC62052-11
Work temperature -30℃~70℃
Outline dimension LXMXH 149x106x62mm (short terminal cover) 179x106x62mm (long terminal cover)
Weight Approx 0.36kg

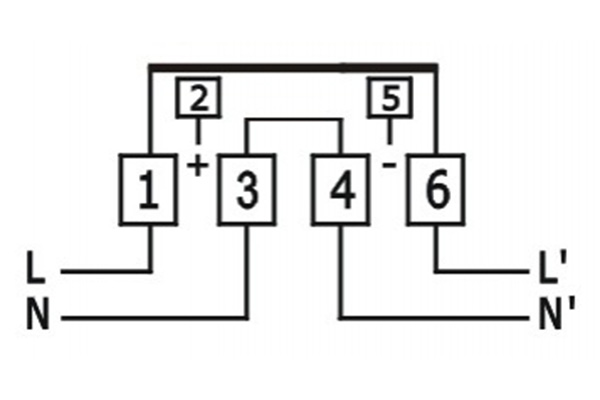

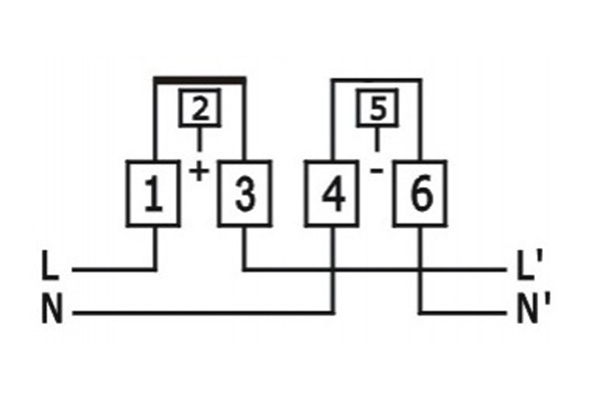

Wire connection

  • DDS238 Single Phase KWH Meter  (Single Phase Meter, Single Phase Watt-hour Meter, Single Phase Energy Meter)
  • DDS238 Single Phase KWH Meter  (Single Phase Meter, Single Phase Watt-hour Meter, Single Phase Energy Meter)

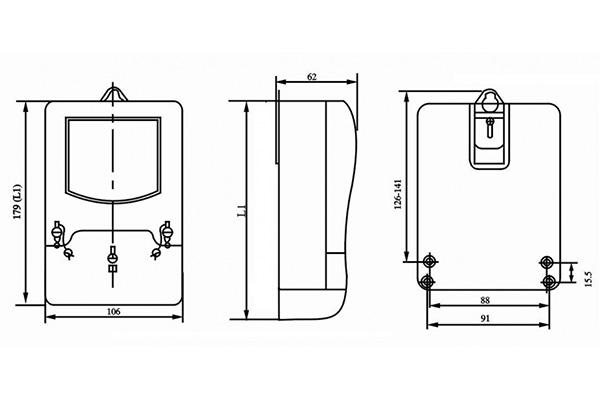

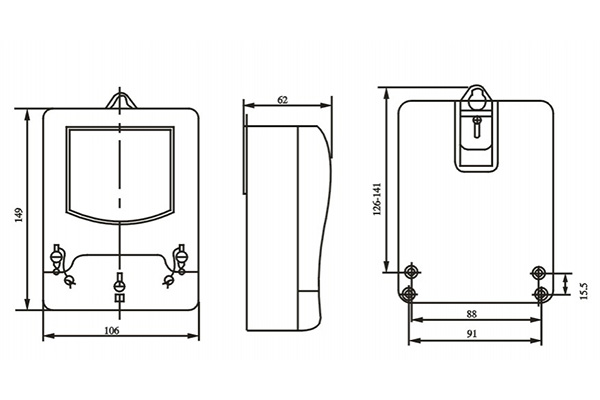

Outline dimension

  • DDS238 Single Phase KWH Meter  (Single Phase Meter, Single Phase Watt-hour Meter, Single Phase Energy Meter)
  • DDS238 Single Phase KWH Meter  (Single Phase Meter, Single Phase Watt-hour Meter, Single Phase Energy Meter)
