D3705
Display mode:
LCD
Display format:
①XXXXXX.XX(6-digit integer + 2-digit decimal)
Description

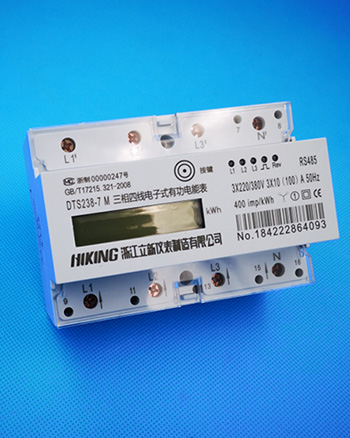

This electric meter is designed to measure three phase four wire AC active energy, suitable for three phase electric equipment and small and medium-sized enterprises and institutions, commercial and residential users who are charged by flat rate tariff. The meter meets IEC62053-21 and IEC62052-11 standards. Meter reading can be achieved by RS485 communication network.
Features
1. Active energy is measured bi-directionally and total, forward and reverse electricity can be showed.
2. Interval electricity display available and it can be reset by pressing a button.
3. Reverse electricity will be measured. Reverse indicator light available.
4. Three phase realtime current, voltage, active power, reactive power, power factors and frequency measurement and display.
5. Passive pulse output, impulse indicator light will flicker while the meter is working.
6. Phase loss LED light indicator
7. Measurement for phase loss. The metering precision will not be influenced if any one phase or two phases of three phase four wire meter cut off.
8. RS485 data communication terminal, compatible with DL/T645-2007 and MODBUS-RTU agreements.
9. While power cut, all storage data will not lose and can be saved for more than 15 years.
10. Meter width is only 125mm. 35mm DIN-rail installation. Similar shape as 7P breaker.
Optional Function
Electric quantity will display and battery power while black out.
Technical Data
| Rate voltage | DTS238-7 RS485 three phase four wire 3x127/220V , 3x120/208V , 3x220/380V, 3x230/400V , 3x240/415V |
| DSS238-7 RS485 three phase three wire(two phase three wire) 2x120/208V , 2x127/220 , 3x220V , 3x380V , 3x400V , | |
| Working voltage range | 0.8～1.2Un |
| Rate Current | 5A/CT,1.5(6)A,5(30)A ,5(60)A ,10(100)A, or other as required |
| Frequency | 50Hz or 60Hz |
| Connection mode | CT type or Direct type |
| Display | LCD |
| Accuracy class | 1.0 |
| Power consumption | < 0.5W/5VA /each phase |
| Start current | 0.004Ib |
| AC voltage withstand | 4000V/25mA for 60 sec |
| Impulse Voltage | 6kV 1.2μs waveform |
| IP grade | IP20 |
| Constant | 400～6400 imp/kWh |
| Pulse output | Passive pulse, pulse width is 80+5 ms |
| Communication port | RS485 port , baud rate 1200～9600 bps ，default is 9600bps ,address 1～247,None parity , stop bits 1 , data bits 8 . |
| Executive standard | DIN 43880 IEC62053-21 IEC62052-11 |
| Work temperature | -30℃～70℃ |
| Outline dimension LXMXH | 125x88x73mm |
| Weight | Approx 0.7kg |
Environment
| Operating temperature | -25℃～55℃ |
| Storage temperature | -40℃～80℃ |
| Reference temperature | 23℃+2℃ |
| Relative humidity | 0 to 95% , non-condensing |
| Altitude | Up to 2500m |
| Warm up time | 10s |
| Mechanical Environment | M1 |
| Electromagnetic Environment | E2 |
| Degree of pollution | 2 |

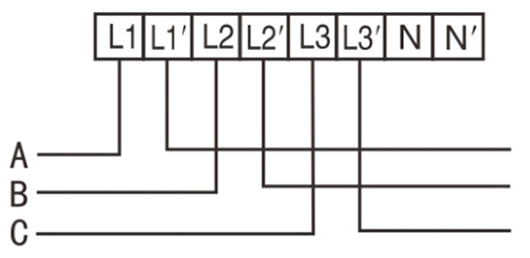

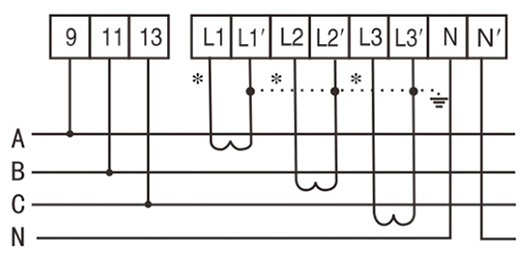

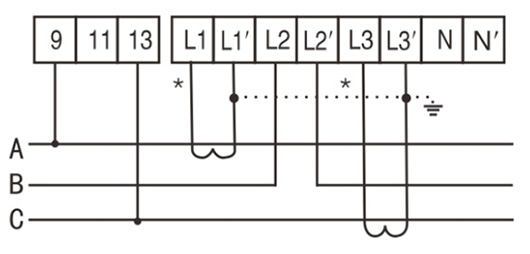

Wire connection

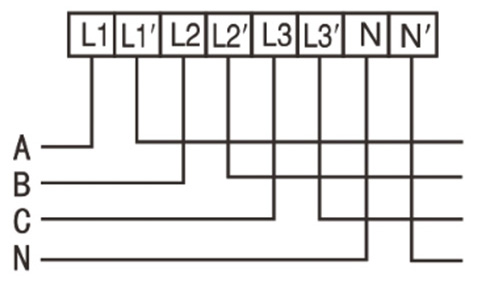

(1) three phase four wire direct connection

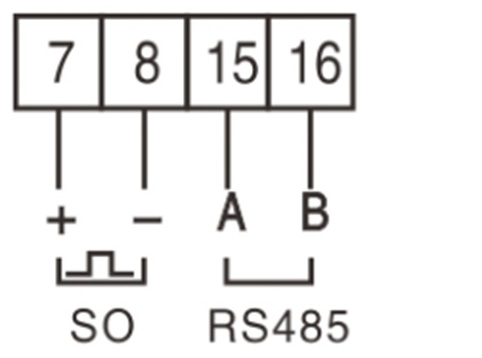

Terminal function

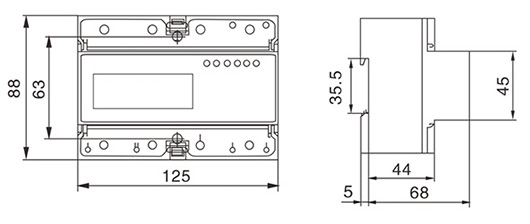

Outline dimension
