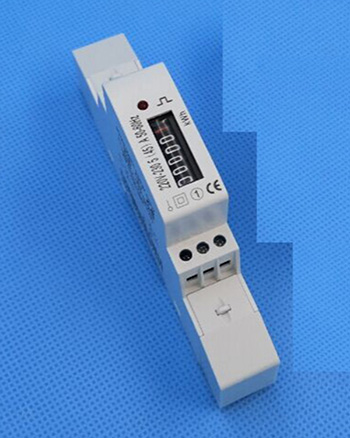

D1102A
Display mode:
LCD display
Display format:
①XXXXX.X (5-digit integer + 1-digit decimal)

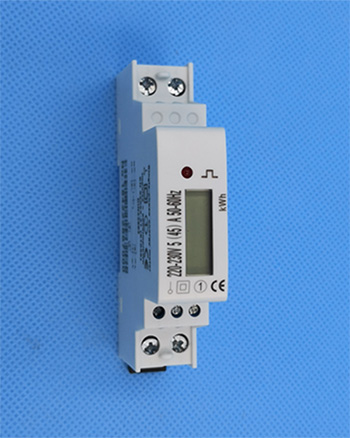

D1102L
Display mode:
LCD display
Display format:
①XXXXX.XX(5-digit integer + 2-digit decimal) （Default）
②XXXXXX.X(6-digit integer + 1-digit decimal)
Description
Designed to measure single phase two wire AC active energy. Suitable for users of secondary circuits with flat rate tariff or single phase electric equipment with narrow interior space. Utilizing advanced SMT (Surface mounting technology) process and long-life components of international famous brands, the meter conforms to the international standard of IEC62053-21.
Features
1. Active energy is measured bi-directionally and reverse electricity will be measured and counted into total electricity.
2. Passive pulse output, conform to DIN43864 standard.
3. Width of the meter is only 18mm. 35mm DIN-rail installation. Similar shape as 1P breaker.
Optional Function
1. Extended enclosure protection
Technical Data
| Rate voltage | 110V,120V,220V,230V,240V |
| Working voltage range | 0.8～1.2Un |
| Rate Current | 5(40),5(45)A |
| Frequency | 50Hz or 60Hz +10% |
| Connection mode | Direct type |
| Display | mechanical step register or LCD |
| Accuracy class | 1.0 |
| Power consumption | < 1W/10VA |
| Start current | 0.004Ib |
| AC voltage withstand | 4000V/25mA for 60 sec |
| Impulse Voltage | 6kV 1.2μs waveform |
| Over current withstand | 30Imax for 0.01s |
| IP grade | IP20 |
| Constant | 1000 imp/kWh or 1600imp/kwh |
| Pulse output | Passive pulse, pulse width is 80+5 ms 5～27VDC , Max current input 27mA DC |
| Executive standard | DIN 43880，IEC62053-21，IEC62052-11 |
| Outline dimension LXMXH | 119x18x62mm（long terminal cover） |
| Weight | Approx 0.08kg |
Environment
| Operating temperature | -25℃～55℃ |
| Storage temperature | -40℃～80℃ |
| Reference temperature | 23℃+2℃ |
| Relative humidity | 0 to 95% , non-condensing |
| Altitude | Up to 2500m |
| Warm up time | 10s |
| Mechanical Environment | M1 |
| Electromagnetic Environment | E2 |
| Degree of pollution | 2 |
Wire connection

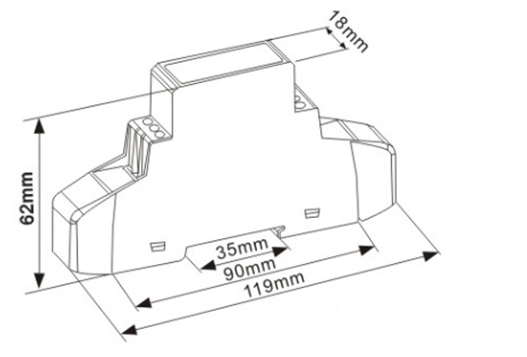

Outline dimension
