DDS238-4-R single phase din rail type watt hour meter (D1405A/D1405L)

DDS238-4-R single phase din rail type watt hour meter (D1405A/D1405L)

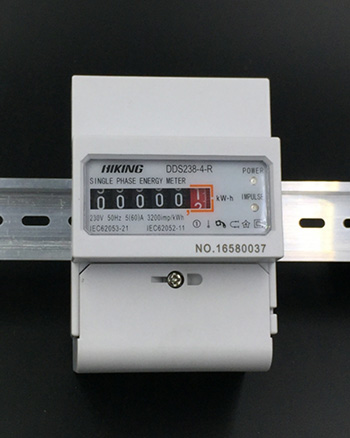

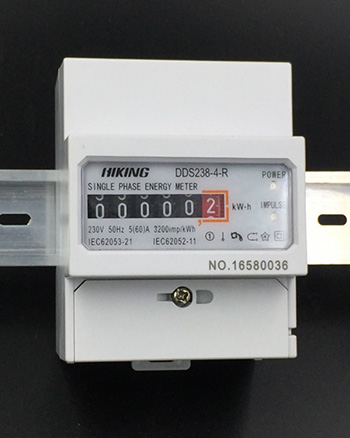

D1405A

Display mode:
Mechanical register display

Display format:
①XXXXX.X (5-digit integer + 1-digit decimal)


With check valve
DDS238-4-R single phase din rail type watt hour meter (D1405A/D1405L)

D1405L

Display mode:
LCD

Display format:
①XXXXXX.X(6-digit integer + 1-digit decimal) (Default)
②XXXXX.XX(5-digit integer + 2-digit decimal)

Description
Designed to measure single phase two wire AC active energy. Suitable for users of secondary circuits with flat rate tariff or single phase electric equipment with narrow interior space. Utilizing advanced SMT (Surface mounting technology) process and long-life components of international famous brands, the meter conforms to the international standard of IEC62053-21.

Features
1. Active energy is measured bi-directionally and reverse electricity will be measured and counted into total electricity.
2. Power indicator lights
3. Passive pulse output, conform to DIN43864 standard
4. Width of the meter is only 78mm. 35mm DIN-rail installation. Similar shape as 4P breaker.
5. All connection lines are incoming and outgoing at the bottom.

Technical Data

Rate voltage 110V,120V,220V,230V,240V
Working voltage range 0.8~1.2Un
Rate Current 5(60)A,10(100)A or other as required
Frequency 50Hz or 60Hz +10%
Connection mode Direct type
Display mechanical step register
Accuracy class 1.0
Power consumption < 1W/10VA
Start current 0.004Ib
AC voltage withstand 4000V/25mA for 60 sec
Impulse Voltage 6kV 1.2μs waveform
Over current withstand 30Imax for 0.01s
IP grade IP51
Constant 800~3200 imp/kWh
Pulse output Passive pulse, pulse width is 80+5 ms
Executive standard DIN 43880,IEC62053-21,IEC62052-11
Outline dimension LXMXH 115x78x65mm (short terminal cover) 115x78x65mm (long terminal cover)
Weight Approx 0.3kg

Environment

Operating temperature -25℃~55℃
Storage temperature -40℃~80℃
Reference temperature 23℃+2℃
Relative humidity 0 to 95% , non-condensing
Altitude Up to 2500m
Warm up time 10s
Mechanical Environment M1
Electromagnetic Environment E2
Degree of pollution 2

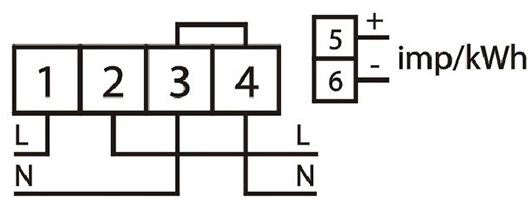

Wire connection

DDS238-4-R single phase din rail type watt hour meter (D1405A/D1405L)

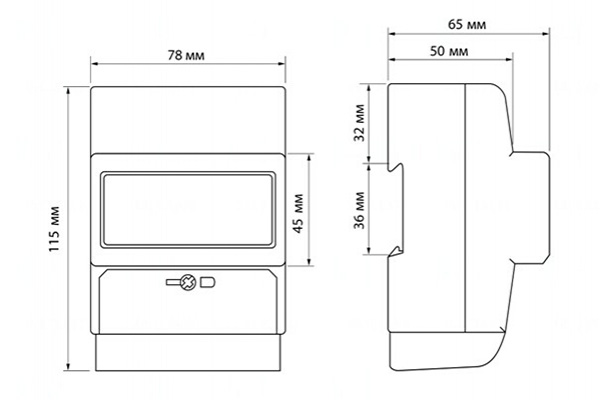

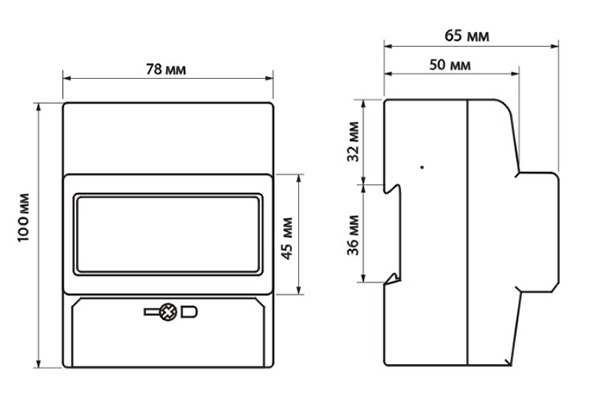

Outline dimension
