A1203
Display mode:
LCD
Display format:
① XXXXXX.XX(6-digit integer + 2-digit decimal)
Description

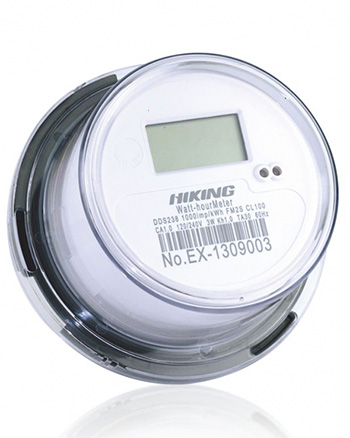

This electricity meter is utilized for measuring single phase two wire or three wire AC active energy. Manufactured by SMT process, it satisfies the international standards of IEC62053-21 and ANSI. Infrared data communication device is available for prepayment management.
Features
1. Active energy is measured bi-directionally and reverse electricity will be measured and counted into total electricity.
2. Every meter has an independent and encrypted infrared prepayment device which guarantees security and reliability.
3. Encrypted prepayment function. Pay in advance of your energy consumption.
4. Trip alert and electricity prepayment.
5. Power overload trip alert.
6. Energy usage on credit available
7. Matched English prepayment software featuring simple operations
8. Impulse indicator light will flicker to show working status when passive pulse outputs.
9. Protection II
Technical Data
| Rate voltage | 110V, 240V |
| Working voltage range | 0.8～1.2Un |
| Rate Current FM1S | 10(60)A, 15(100)A, CL100 CL200 |
| Frequency | 60Hz |
| Connection mode | Direct type |
| Display | LCD |
| Accuracy class | 1.0 or 0.5 |
| Power consumption | < 2W/10VA |
| Start current | 0.004Ib |
| AC voltage withstand | 4000V/25mA for 60 sec |
| Impulse Voltage | 6kV 1.2μs waveform |
| IP grade | IP54 |
| Constant | 800～1600 imp/kWh |
| Pulse output | Passive pulse, pulse width is 80+5 ms |
| Executive standard | IEC61036，IEC62053-21，ANSI |
| Work temperature | -30℃～70℃ |
| Weight | Approx 0.7kg |
| Export country | Philippines and south American |

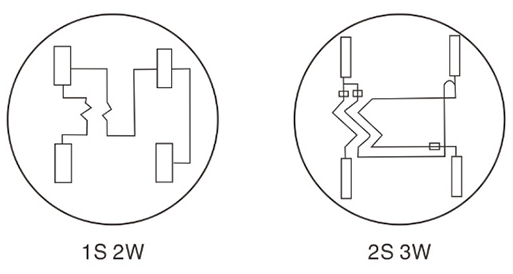

Wire connection

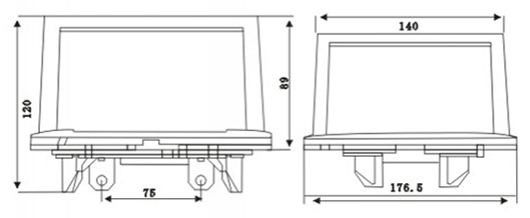

Outline dimension
